Backlight Conveyors

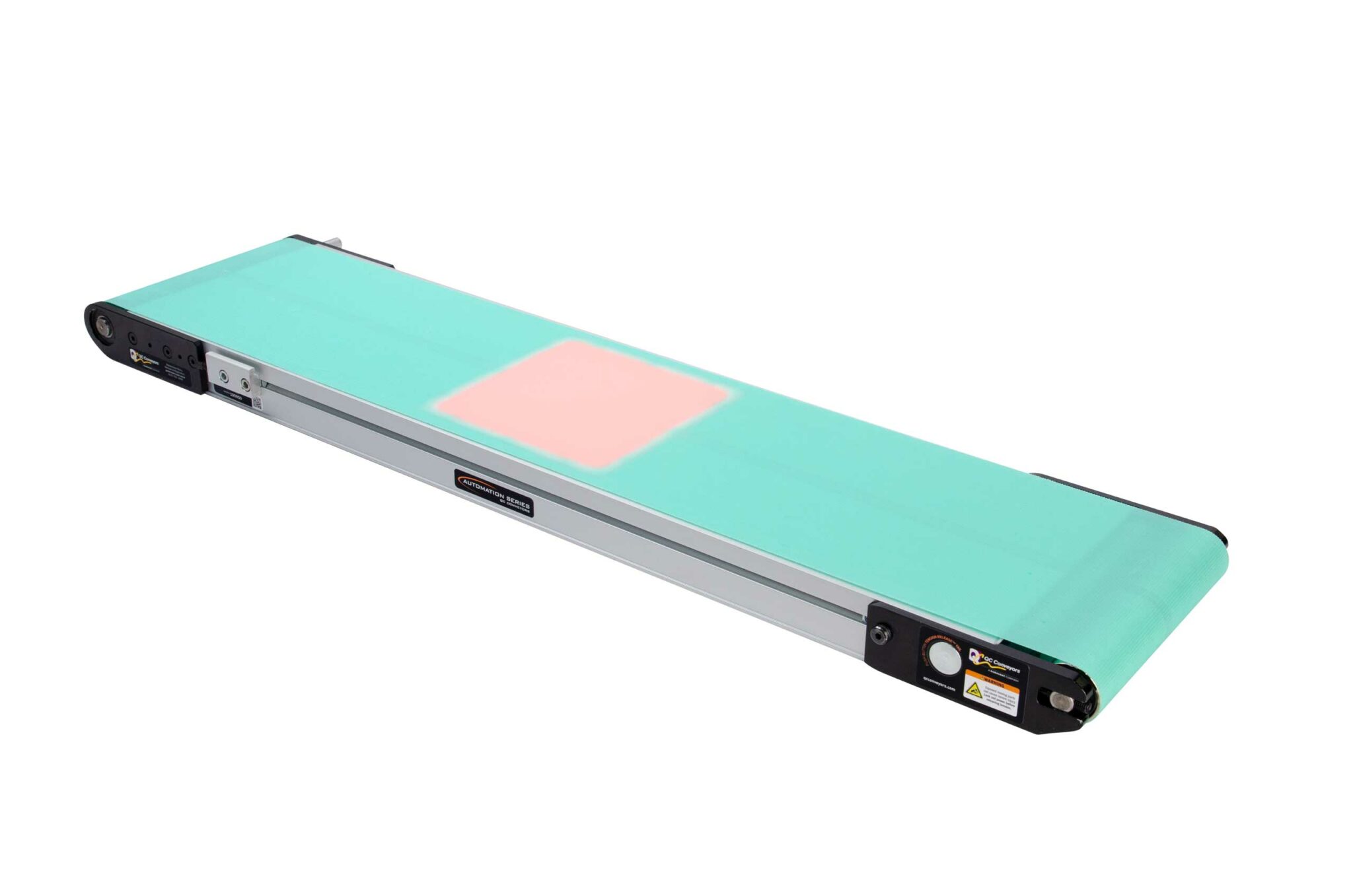

AS40 backlight conveyors

Specifications

Features

Integrated Backlight

Backlights are used in a wide variety of machine vision applications to provide contrast for part inspection or robot orientation. The contrast from the backlight allows for better resolution from the vision system than reflective lighting can provide.

Single Piece Aluminum Frame

Box Frame Construction for Rigidity

The frame is the backbone of the conveyor. A sturdy frame helps to ensure positive tracking throughout the life of the conveyor. That’s why we designed ours with a box-frame construction that resists both latitudinal and longitudinal deflections. Conveyors 18” and wider feature a rigid aluminum/steel frame.

More Information →

Crowned Pulley

Ensures Accurate Tracking in Most Applications

On any conveyor, the belt pulls to the longest point on the conveyor. By using a crowned pulley — that’s higher in the center than at the ends — we’re able to ensure proper tracking in most applications without the use of a v-guide. The straight knurling provides positive traction, but allows the belt to float slightly from side to side without damage.Tension Release Tails flip up at the push of a button to relieve tension on the belt. This makes it easy to clean under the belt. A gentle push locks the tail back into place with tension and tracking setting retained.

Tension Release Tail

Flips up at the push of a button

All Automation Series conveyors support optional v-guide belting, which works to keep the belt centered in applications with side loading/exiting or reversing.

More Information →

V-Guide Belt Capable

Proper tracking for demanding applications

Optional nosebar tails allow for transfers of small products between conveyors. The tighter 11mm radius of the pulley reduces the gap between pulleys.

More Information →

Optional Nosebar Tail

Ideal for Transferring Small Products

More Information →

Specifications

Width: 4″, 5″, 6″, 8″, 10″, 12″
Length: up to 20′
Load: up to 120 lbs
Speed: up to 400 FPM
Profile: 1.95″ high
Assembled with all metric fasteners
Light Source: LED
Quantity LEDs: 12 per Square Inch
LED Life: up to 100,000 hours*

Color Dash # λ Dominant Typical λ Dominant Range Spectra Half Width Δλ½ λ Peak Typical Units
Red -660 643 n/a 20 660 nm
Green -530 525 520–535 35 530 nm
Blue -470 470 465–475 25 468 nm
White -WHI Color Temp 6300K typ (5600–7000K)

Input Voltage: 24VDC (25VDC Maximum)

Input Current per Square Inch:

  • -660 20mA typical (25mA Maximum)
  • -530 16mA typical (20mA Maximum)
  • -470 29mA typical (35mA Maximum)
  • -WHI 18mA typical (20mA Maximum)

Strobe Impedance: 9400 ohms per Square Inch (u,e BL44-XXX = 9400 ohms/16 Square Inches = 588 ohms)
Connector: Quick Connect, 4 pin Euro/Micro (male)

Cable Length: 8″ (for standard configurations)

Wiring Diagram: wiring diagram

Pin # Wire Color Function
1 Brown +24VDC
2 N/C N/C
3 Blue +24VDC return (GND)
4 -Black PNP Strobe Input: < 1VDC for “OFF” +5VDC to +24VDC for “ON”

Accessories

Belt Options

conveyor belt

We offer a variety of cleated and flat belts including MultiPurpose, High Friction, Accumulation, Cut Resistant, Anti-Microbial, Static Conductive, Color Contrasting, Translucent, Release Properties, and Specialty/Profile belts.

Dimensions


Literature

Automation Series Catalog

View →

AS40 Manual

View →
