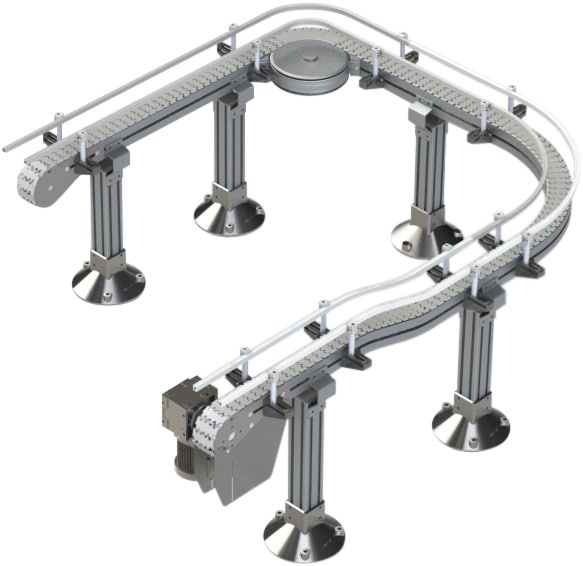

Flextrac Series

Features

  • Modular construction allows infinite configurations for nearly any factory automation application
  • Take advantage of unused vertical real estate with gripper elevator or alpine conveyor options
  • Available with aluminum or stainless steel construction
  • Variety of chain options to support differing applications, including high speeds, inclines, static-sensitive products, and non-marking
  • Free-rolling or driven transfers available to ease product transfer between conveyors
  • Easy to re-configure as new equipment or layouts require

Specifications

  • Widths: 2.5″ to 23″
  • Lengths: up to 98.5′
  • Loads: up to 880 lbs
  • Speeds: up to 164 FPM
  • Assembled with all Metric Fasteners

Flextrac Series High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

Automation Series – AS40

AS40 Features

  • Rigid, single-piece aluminum frame*
  • Large, sealed, double-row ball bearings support high speeds up to 400 FPM
  • Built-in t-slots allow rapid accessory mounting
  • Supports optional v-guide belts for reversing and side-loading applications
  • Compact drives capable of high speeds available as AC or Brushless DC motors
  • Unique Pivot™ Drive package rotates to any position for maximum flexibility
  • Push-button Tension Release Tail is designed for fast belt changes and easy access to the frame to clean or clear debris

*Conveyors 12″ and wider feature multi-piece steel/aluminum construction.

AS40 Specifications

  • Widths: 2″ to 24″
  • Lengths: up to 20′
  • Loads: up to 120 lbs
  • Speeds: up to 400 FPM
  • Profile: 1.95″ High
  • Assembled with all metric fasteners

AS40 High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

Automation Series – AS40-CD

AS40-CD Features

  • Center Drive can be positioned at any point along the length of the conveyor — simply loosen a few screws, slide to the new location and re-tighten the fasteners
  • Large, sealed, double-row ball bearings support high speeds up to 400 FPM
  • Rigid, single-piece aluminum frame*
  • Built-in t-slots allow rapid accessory mounting
  • Supports optional v-guide belts for reversing and side-loading applications
  • Compact drives capable of high speeds available as AC or Brushless DC motors
  • Unique Pivot™ Drive package rotates to any position for maximum flexibility
  • Push-button Tension Release Tail is designed for fast belt changes and easy access to the frame to clean or clear debris

*Conveyors 12″ and wider feature multi-piece steel/aluminum construction.

AS40-CD Specifications

  • Widths: 2″ to 24″
  • Lengths: up to 26′
  • Loads: up to 120 lbs
  • Speeds: up to 400 FPM
  • Profile: 1.95″ High
  • Assembled with all metric fasteners

AS40-CD High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

Automation Series – AS40-Z

AS40-Z Features

  • Rigid, single-piece aluminum frame*
  • Z-track design gives greater control over belt tracking, and longer belt life.
  • Large, sealed, double-row ball bearings support high speeds up to 400 FPM
  • Built-in t-slots allow rapid accessory mounting
  • Supports optional v-guide belts for reversing and side-loading applications
  • Compact drives capable of high speeds available as AC or Brushless DC motors
  • Unique Pivot™ Drive package rotates to any position for maximum flexibility
  • Push-button Tension Release Tail is designed for fast belt changes and easy access to the frame to clean or clear debris

*Conveyors 12″ and wider feature multi-piece steel/aluminum construction.

AS40-Z Specifications

  • Widths: 8″ to 24″
  • Lengths: up to 20′
  • Loads: up to 120 lbs
  • Speeds: up to 200 FPM
  • Profile: 1.95″ High
  • Angles: 30º, 45º, 60º
  • Assembled with all metric fasteners

AS40-Z High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

HydroClean Series

HC200 Features

  • Stainless steel, sanitary design that is easy to clean
  • Sides, guides, belt, drive end, and tail end can be removed for cleaning without tools
  • Slider bed is self-draining and fasteners are designed to minimize opportunities for bacteria growth
  • Extremely quiet operation is ideal for applications where workers are nearby
  • NSF Certified and BISSC Certified HC200 conveyors are available with FDA and USDA suitable antimicrobial belting
  • Stainless steel bearings with NSF approved MicroPoly™ solid lubricant are sealed for life and covered for extra protection
  • Drive and tail pulleys are v-guided and crowned to ensure proper tracking
  • Plastic chain belting available

HC200 Specifications

  • Widths: 4″ to 24″
  • Lengths: 24″ to 18′
  • Loads: up to 120 lbs
  • All stainless steel construction
  • Metric hex head and slotted bolts used throughout the assembly

Long Description

HydroClean Series, HC200 Conveyors are built for easy cleaning. They feature a stainless steel design that can be fully disassembled without tools for in place cleaning. The belt, tail, drive and stands can be removed for cleaning simply by using a series of pull pins. HC200 conveyors handled speeds up to 300 feet per minute, with loads up to 120 lbs. Widths are available in increments from 4″ to 24″ and lengths from 24″ to 18′. Their 2.34″ profile will fit in even the most pac-limited applications. HC200 conveyors are available with a variety of v-guided belting, including sealed edge and totally encapsulated belts, which can be used for NSF or BISSC Certified models. We offer online configuration and quoting 24/7 at qcconfig.com and back our HydroClean products with a 10 year warranty.

HC200 High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

Industrial Series — IS125 & IS125-FT

IS125 Features

  • Tough, single piece steel frame supports heavy loads up to 450 lbs
  • Ver low profile (1.89″) — fits where conventional conveyors can’t
  • Lube-for-Life Bearings™ eliminate routine bearing maintenance
  • Unique snap-in sealed tail assembly — makes belt replacement quick and easy

IS125 Specifications

  • Widths: 4″ to 24″
  • Lengths (standard): 18″ to 12′
  • Lenths (extended): 13′ to 23′
  • Profile: 1.89″
  • Loads: up to 450 lbs
  • Speed: up to 225 FPM

IS125-FT Plastic Chain Specifications

  • Widths: 2″ to 24″
  • Lengths (standard): 2′ to 40′
  • Profile: 3.03″
  • Loads: up to 500 lbs
  • Belt Pitch: 1″

IS125 & IS125-FT High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

Industrial Series — IS175-ID

IS175-ID Features

  • Quiet, efficient 24vdc motor located inside the drive pulley — all within a low 2.54″ profile
  • Maintenance-free — no bearings or gearboxes to lubricate
  • Safe — Low-voltage protects workers from dangerous currents
  • Variable-speed control card easily integrates with automation systems for “run on demand” applications, using inhibit/run controls from devices such as timers and photo-eyes

IS175-ID Specifications

  • Widths: 12″, 18″, 24″
  • Lengths (standard): 18″ to 12′
  • Profile: 2.54″
  • Loads: up to 75 lbs
  • Incremental Variable Speeds: 7 to 47 FPM

IS175-ID High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

Industrial Series — IS300

IS300 Features

  • Precision indexing accurate to ±0.15″
  • Positive, no-slip timing pulley and self-aligning sealed drive bearings
  • Cleats can be custom-molded to fit your application
  • Convertible timing belt cleats are easily attached or removed to meet charging application requirements

IS300 Specifications

  • Widths: up to 18″
  • Lengths (standard): up to 24′
  • Profile: 3″
  • Belt: 10mm pitch teeth
  • Speed: up to 2000 FPM

IS300 High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location.

Industrial Series — IS400

IS400 Features

  • Heavy-duty load carrying capacities up to 600 lbs
  • High speeds — up to 360 FPM
  • V-guide option for side-loading or reversing applications

IS400 Specifications

  • Widths: 6″ to 48″
  • Lengths (standard): up to 36′
  • Profile: 3″

IS400 High Resolution Images

Select the image you would like to download. When the page opens, right click the image and save to your preferred location4
