AS40 Belt Conveyor | QC Industries

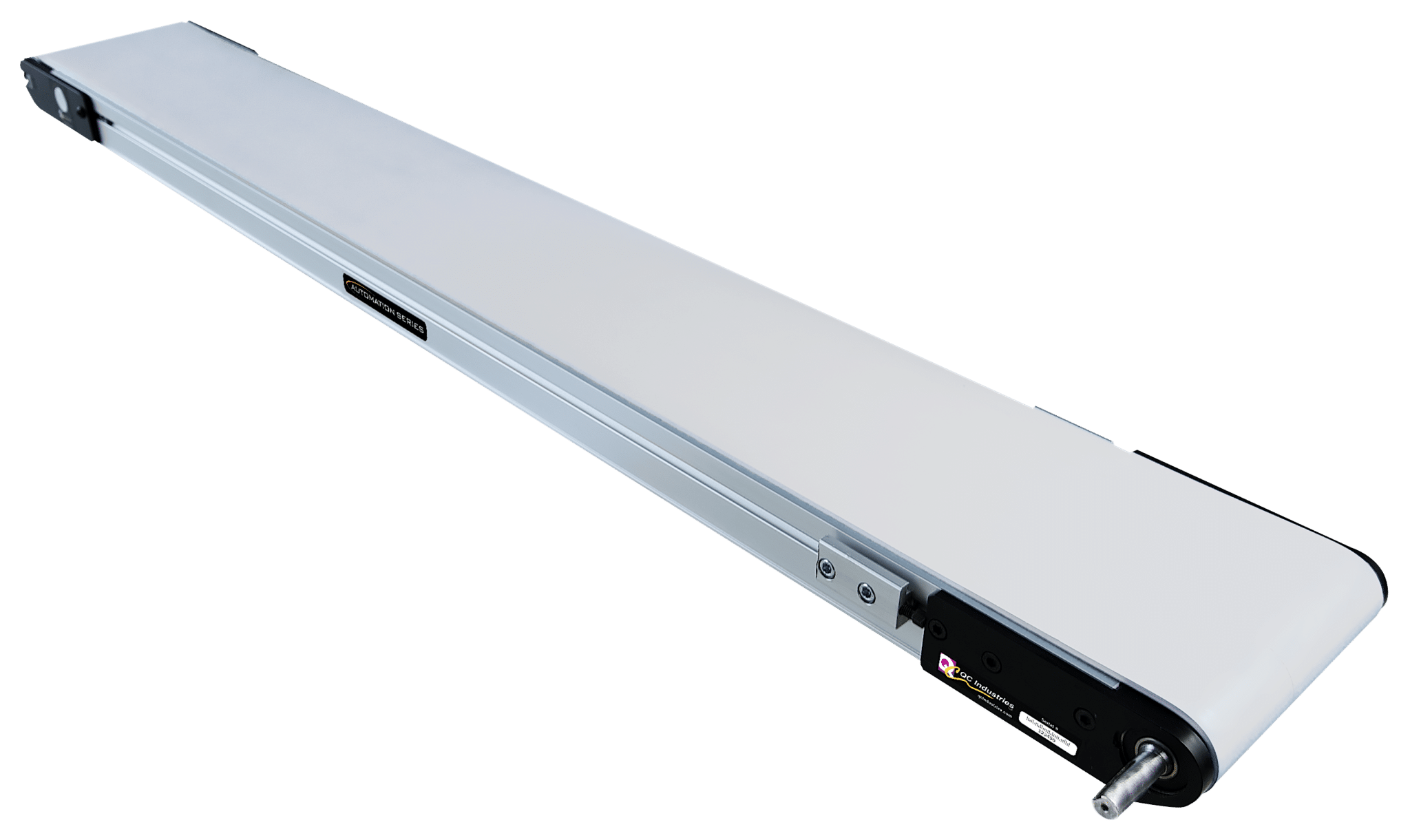

End Drive Conveyor

Versatile conveyor built on a rigid aluminum frame featuring tee slots for rapid accessory mounting

Configure & Get a Quote


Single Piece Aluminum Frame

Box Frame Construction for Rigidity

The frame is the backbone of the conveyor. A sturdy frame helps to ensure positive tracking throughout the life of the conveyor. That’s why we designed ours with a box-frame construction that resists both latitudinal and longitudinal deflections. Conveyors 18” and wider feature a rigid aluminum/steel frame.

More Information

Crowned Pulley

Ensures Accurate Tracking in Most Applications

On any conveyor, the belt pulls to the longest point on the conveyor. By using a crowned pulley — that’s higher in the center than at the ends — we’re able to ensure proper tracking in most applications without the use of a v-guide. The straight knurling provides positive traction, but allows the belt to float slightly from side to side without damage.

Tension Release Tail

Flips up at the push of a button

Tension Release Tails flip up at the push of a button to relieve tension on the belt. This makes it easy to clean under the belt. A gentle push locks the tail back into place with tension and tracking setting retained.

More Information

V-Guide Belt Capable

Proper tracking for demanding applications

All Automation Series conveyors support optional v-guide belting, which works to keep the belt centered in applications with side loading/exiting or reversing.

More Information

Optional Nosebar Tail

Ideal for Transferring Small Products

Optional nosebar tails allow for transfers of small products between conveyors. The tighter 11mm diameter of the pulley reduces the gap between pulleys.

More Information

Backlight Conveyors

Backlights are used in a wide variety of machine vision applications to provide contrast for part inspection or robot orientation. The contrast from the backlight allows for better resolution from the vision system than reflective lighting can provide.

More Information


Once the project launched, the conveyor system took off with minimal adjustments;
this says a lot for the design and quality of the QC Conveyors product.
~Kevin Hicks, Sr. Manufacturing Engineer


  • Width: 2", 3", 4", 5", 6", 8", 10", 12", 18", 21", 24"
  • Length: up to 20'
  • Load: up to 120 lbs
  • Speed: up to 400 FPM
  • Profile: 1.95" high
  • Assembled with all metric fasteners


Configure & Quote

24/7 Online Configuration and Quoting

Engineer-Developed Rules Ensure Accuracy

Configure and quote conveyors 24 hours a day using our online Conveyor Configurator. An intelligent assistant uses engineer-developed rules to make sure all your components — including gearmotors, stands, and sides/guides — work together properly.

Configure & Get a Quote

Quick Ship Belts

Quick Ship Stamp

When you order a conveyor from us, we will build it to the size you need and ship it in just FIVE days. This includes all our most popular conveyor models — including our AS40 conveyors — when you order them with one of our most commonly-requested belt options (below). Conveyors with cleated and/or v-guide belts are available in seven days. Look for the Quick Ship icon in our Conveyor Configurator to find belt selections available with short lead times!

We offer a large variety of additional belt options to make sure you get the right product for your application.

View All Belts

Warranty & Policies

QC Warranty Badge

We are proud to stand behind the conveyors we build for five years. We'll even double our warranty to 10 years when you register your conveyor at warranty – the best in the industry – demonstrates our commitment to quality in every product we sell.

Our conveyors are designed to withstand the demands placed on them in modern industrial applications. Each conveyor is rigorously tested before leaving our factory to ensure quality.

Please see the full warranty details for more information.

Full Warranty Details


AS40 Manual

Details installation and maintenance of AS40 conveyors.

Available for download or online view. Printed copy included with purchase of product.


Automation Series Catalog

Overview of our three Automation Series products: AS40, AS65 and AS40Z.

Available for download or online view.




Automation Series Introduction

An overview of our AS40 and AS65 Automation Series Conveyors


AS40 Tracking

Tracking demonstration for an AS40 Conveyor
